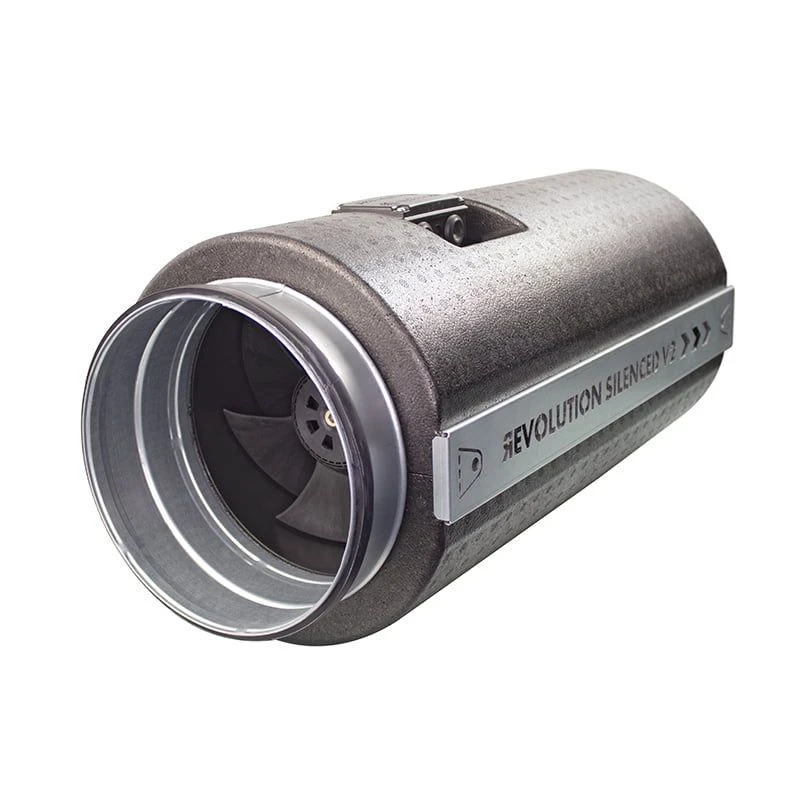

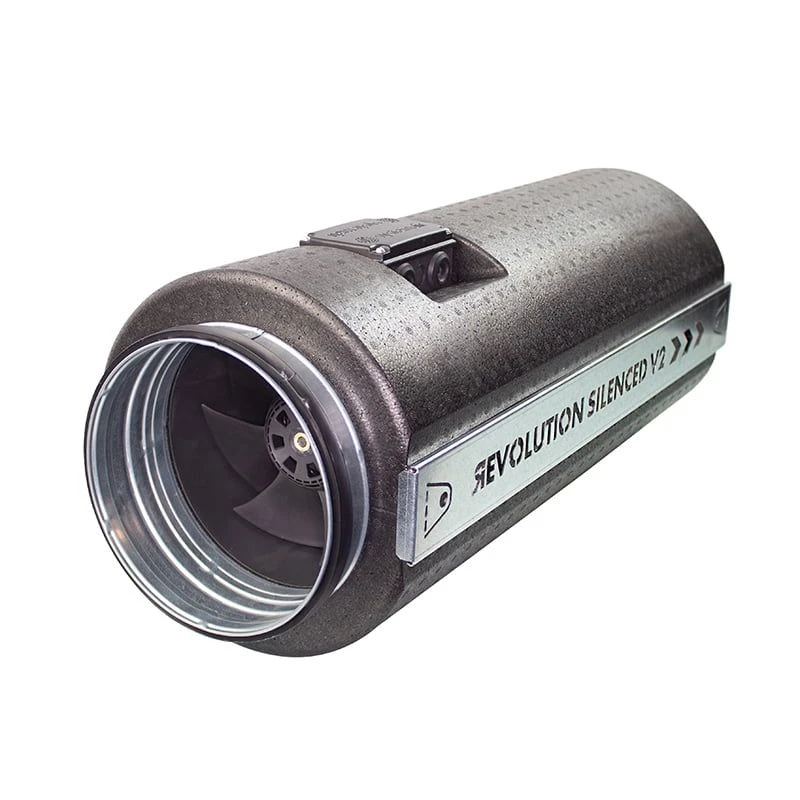

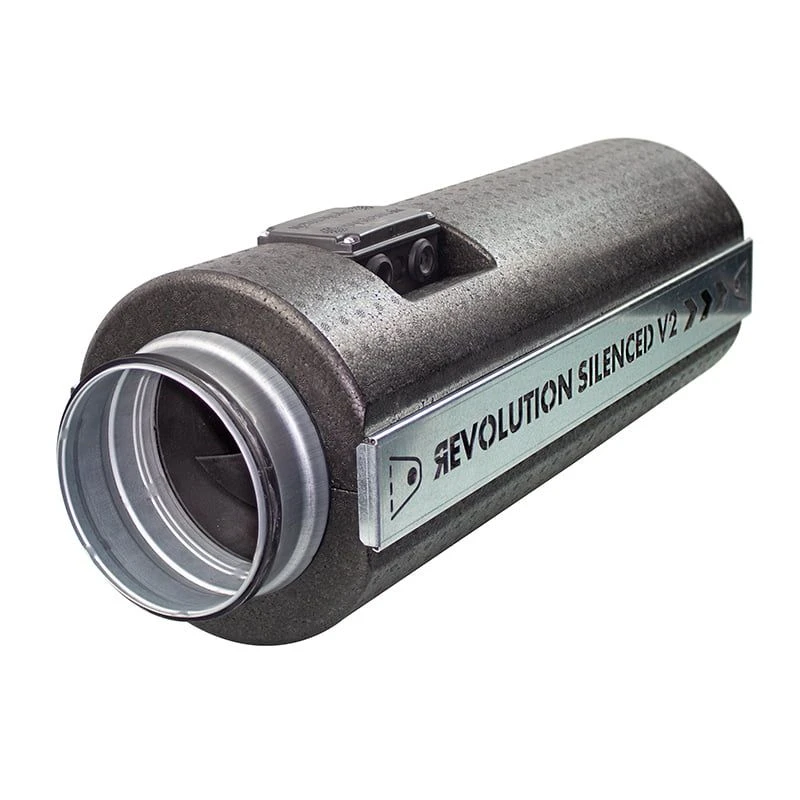

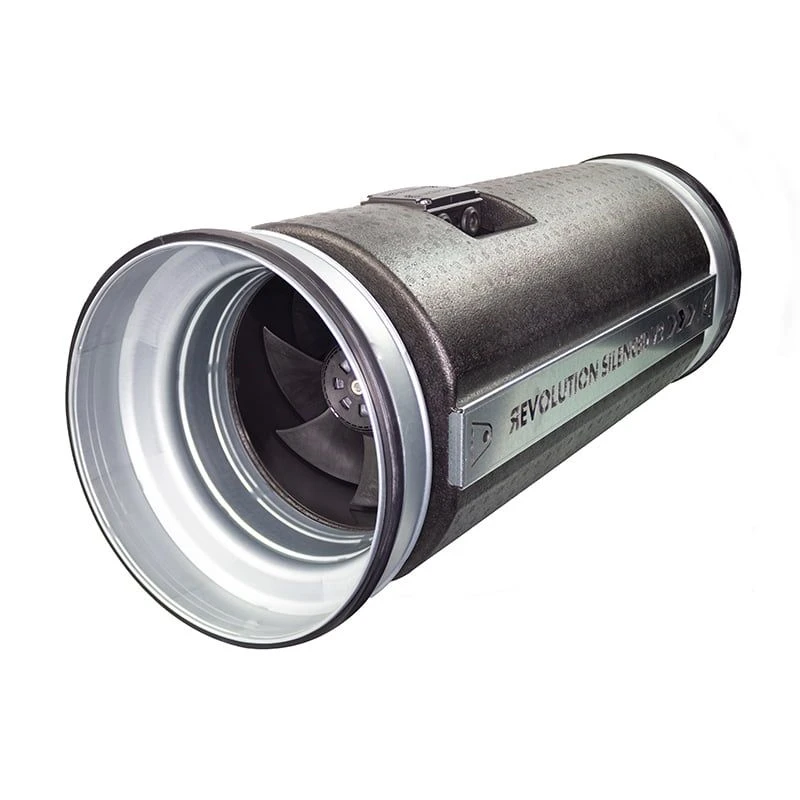

What is The Revolution Vector Silenced V2 EC Extraction Fan?

The Revolution Silenced V2 is the next generation of silenced fans. Global Air Supplies have gone back to the drawing board to further improve their already awesome design with the V2 revolution silenced EC fan.

This EC fan is engineered to maintain all the advantages of the original model with reductions in weight and to make it even quieter. The Revolution Silenced V2 is the ultimate sound-absorbing fan.

Key Features

The V2’s new housing incorporates a sound-reducing foam designed especially for ventilation systems and doesn’t absorb moisture or dust. The metal flanges are inserted into the housing with rubber grommets, forming a seal. The fan, flanges and silencing tube insert into a light, sturdy and moulded outer-body working to deaden sound.

How Do The Revolution Vector Fans Work?

The Revolution Vector silenced V2 EC extraction fans have a new sealed housing. The housing was developed as a new and novel solution to reduce the noise of airflow. Revolution fans couple the new housing design with silent motors and powerful, double-balanced aerodynamically optimised blades and guide vanes.

Vector fans feature frictionless electronically commutated (EC) motors that deliver a level of efficiency that blows a lot of other extraction fans out of the water. Vector fans use around half the power of a traditional duct fan, saving you money on your energy bills. They also generate huge pressure levels, moving a massive volumes of air for their size. They also deal with the drag factor created by your carbon filter with ease.

Control EC Fans To Use Less Power and Create Less Noise

Use your Vector fans in conjunction with a G.A.S. fan speed controller. You will need an Active Male to Male cable. G.A.S. have carefully designed and engineered their fans and controllers specifically for use with EC motors. With G.A.S EC fans and controllers you can regulate fans right down to 1% of their output in 1% increments to avoid buzzing or humming.

Improved Noise and Energy Efficiency

Unlike other types of extraction fans, EC fans offer improved energy efficiency, as they operate in direct correlation with the amount of power you apply to them. This allows you to finely control the speed, noise, amount of air the unit is moving and costs. When you turn a typical duct fan down to 50%, it delivers less than 50% of its rated airflow and continue to consume 100% of the power.

The new housing in the Revolution Silenced V2 incorporates a sound-reducing foam, designed specifically for ventilation systems. It does not absorb moisture or dust. The metal flanges are inserted into the housing with rubber grommets to form a seal. The fan, flanges and the silencing tube seal into a light, sturdy unit with a moulded outer-body that also helps deaden sound.

Garden tip:

For quieter operation, use these silenced extractor fans with Phonic Trap ducting and quick connect ducting kits.

What’s the Revolution Vector Silenced V2 EC Extraction Fan Airflow & Sound Level?

150 mm 6-Inch

Max. Airflow: 764 m3/hr

Sound Level dB (A): 38

200 mm 8-Inch

Max. Airflow: 1345 m3/hr

Sound Level dB (A): 46

250 mm 10-Inch

Max. Airflow: 1787 m3/hr

Sound Level dB (A): 40

250 mm L 10-Inch

Max. Airflow: 2102 m3/hr

Sound Level dB (A): 44

315 mm 12-Inch

Max. Airflow: 2224 m3/hr

Sound Level dB (A): 43

Compatible Revolution Vector Silenced V2 EC Extraction Fan Controller Equipment

G.A.S. Digital EC Fan Controller and optional G.A.S. Digital EC Fan Controller Balancer

This offers precision thermostatic fan control and is deemed as the best all rounder in terms of price and performance.

G.A.S. EC1 Thermostatic Fan Speed Controller a simple budget controller that regulates your fan according to room temps.

G.A.S. EC Fan Speed Controller connects to two separate EC fans to control the difference between output rates. Great for generating negative pressure when your intake fan and extraction fan are the same size.

G.A.S. Enviro Controller offers control over EC fans, and it can also switch on (and off) almost any piece of equipment according to grow room conditions or timing schedules.
